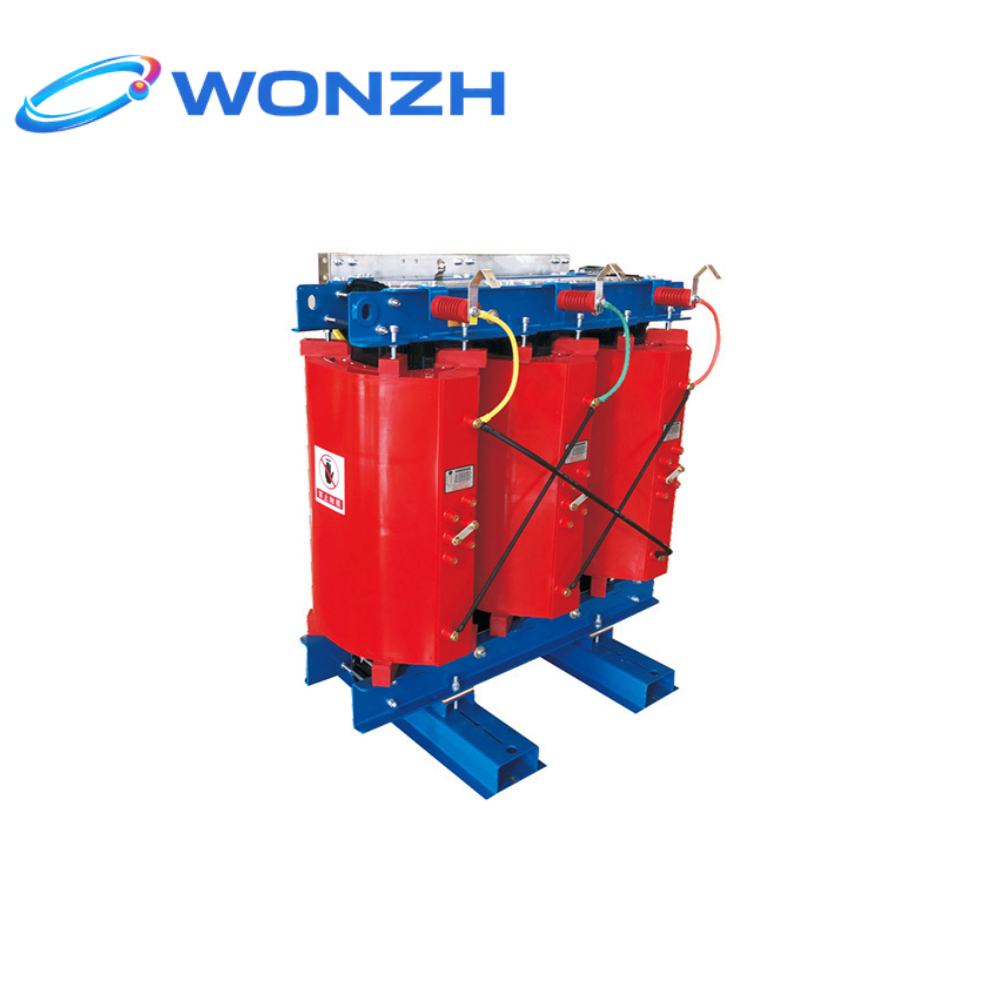

The SCB11 epoxy resin cast dry-type transformer is an upgraded version of the SCB10 series, designed with lower losses, improved energy efficiency, and enhanced operational reliability.

Manufactured using advanced casting technology, high-quality materials, and precise production processes, it offers excellent electrical performance and long service life.

This transformer is oil-free, fire-resistant, and environmentally friendly, making it ideal for indoor and safety-critical applications.

它廣泛應用於：

• 高樓大廈
• 商業中心
• 機場和隧道
• 化學工廠
• 核電站
• Marine and offshore systems

---

符合標準

• IEC 60076-11 - 乾式電源變壓器
• GB/T 1094.1 - 電力變壓器
• GB/T 1094.11 - 乾式變壓器
• GB/T 10228 - 乾式變壓器技術要求
• JB/T 10088 - 6kV-500kV 變壓器的噪音水平
• GB 20052-2020 - 能源效率標準

---

主要功能

✔ Higher Energy Efficiency

• Lower no-load and load losses than SCB10
• Meets modern energy-saving requirements
• Reduces operating costs over time

---

✔ 高安全性與耐火性

• 無油設計消除火災危險
• Non-toxic and environmentally friendly
• 適合安裝在負載中心附近

---

✔ 可靠性高、使用壽命長

• Advanced epoxy resin casting process
• Low partial discharge level
• Excellent thermal stability and durability

---

✔ 強大的過載能力

• Efficient cooling system
• Supports forced air cooling for increased capacity

---

✔ 防潮及抗嚴酷環境能力

• Excellent performance in high humidity conditions
• Suitable for demanding industrial environments

---

✔ 智慧型監控系統

• Real-time temperature monitoring of windings
• 自動風扇控制
• 警報與跳脫保護
• 選購的遠端監控系統

---

✔ Compact & Cost-Effective Installation

• Small size and lightweight
• Reduced installation space and cost

---

結構設計

🔸 高壓繞線

• 無氧銅箔導體
• F 級隔熱系統
• 玻璃纖維強化結構
• 真空環氧樹脂鑄造

➡ 優點：

• 高電氣強度
• 低局部放電
• 絕緣性能極佳

---

🔸 低電壓繞組

• F 級絕緣銅箔繞組
• 內建冷卻風管
• Resin sealing for enhanced durability

➡ 提供：

• 抗短路能力強
• 高效散熱

---

🔸 核心

• 高品質晶粒取向冷軋矽鋼
• 45° 梯級搭接結構
• 雷射切割夾持系統

➡ 功能：

• 低空載損耗
• 降低噪音
• 高結構強度

---

應用

• Commercial buildings and complexes
• 機場與捷運系統
• 工業廠房與化學工業
• Power distribution rooms
• 離岸與海洋應用

---

優勢摘要

• Lower loss than SCB10
• Energy-saving and environmentally friendly
• Fireproof and maintenance-free
• 可靠性高、壽命長
• 智慧型監控能力
• Suitable for indoor critical applications

---

常見問題

1️⃣ What is the difference between SCB10 and SCB11 transformers?

The SCB11 transformer offers lower losses and higher energy efficiency compared to SCB10.

👉 It is more suitable for projects requiring energy-saving performance and long-term cost reduction.

---

2️⃣ Is SCB11 suitable for indoor installation?

Yes, it is specifically designed for indoor use:

• 耐火
• No oil leakage risk
• Safe for high-density environments

👉 Ideal for commercial buildings and infrastructure projects.

---

3️⃣變壓器需要維護嗎？

SCB11 is a maintenance-free transformer, requiring only:

• 例行檢查
• Monitoring via temperature control system

---

4️⃣ Can remote monitoring be integrated?

是的，它支援：

• 溫度監控
• 風扇控制
• Alarm and protection functions
• Remote communication interfaces

👉 Enables smart grid integration.
