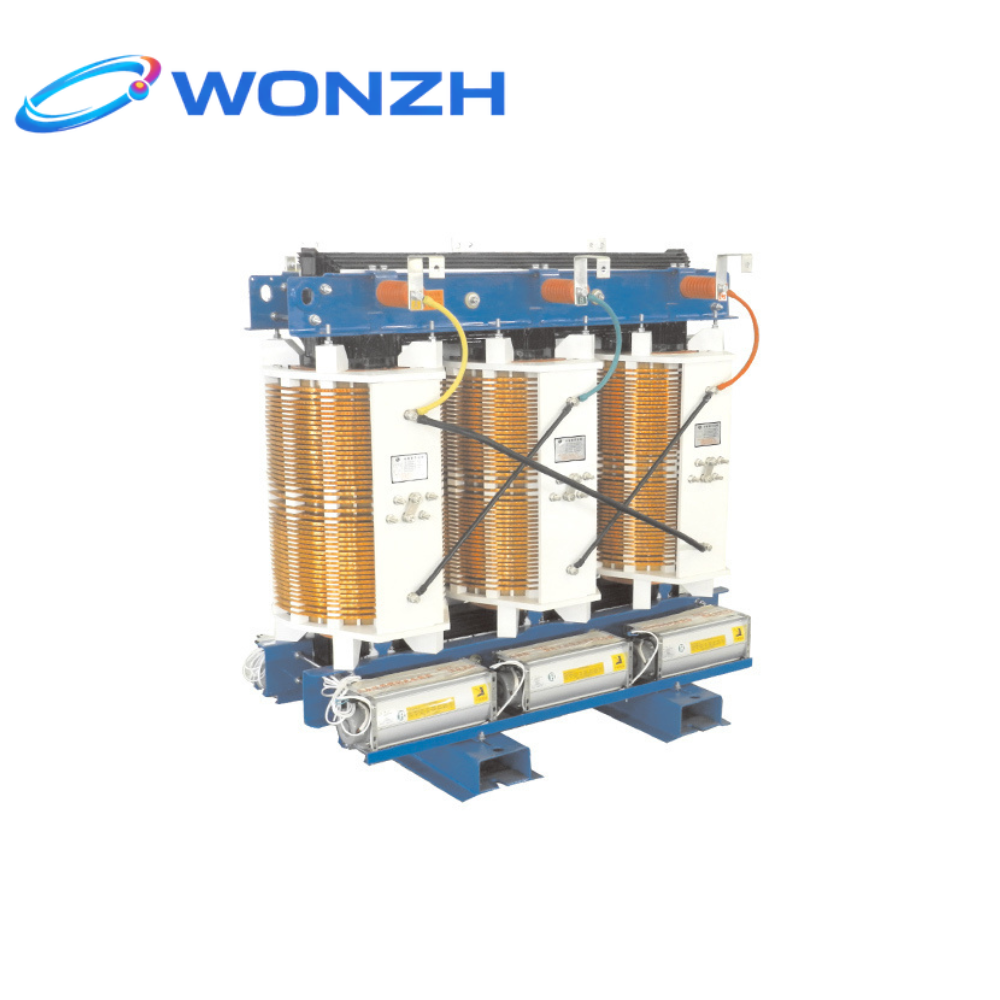

The 10kV SGB series dry-type transformer is a high-performance transformer designed for harsh environments, high fire-safety requirements, and fluctuating load conditions.
Unlike cast resin transformers, the SGB series adopts VPI (Vacuum Pressure Impregnation) technology combined with NOMEX insulation, providing excellent thermal performance, superior safety, and long service life.
It is especially suitable for environments with:
- High humidity
- Heavy pollution
- Large load fluctuations
- Strict fire safety requirements
典型的應用包括
- Airports and power plants
- Metallurgical industries
- Hospitals and high-rise buildings
- 商業中心
- 石化與核子設施
符合標準
- IEC 60076-11 - 乾式電源變壓器
- GB/T 1094.1 - 電力變壓器
- GB/T 1094.11 - 乾式變壓器
- GB/T 10228 - 乾式變壓器技術要求
- JB/T 10088 - 6kV-500kV 變壓器的噪音水平
- GB 20052-2020 - 能源效率標準
主要功能
✔ 優異的散熱效能
- Superior heat dissipation
- Long thermal lifespan
- Supports 120% continuous overload under IP45 conditions without forced cooling
✔ Exceptional Fire Safety
- Flame-retardant materials
- No smoke emission even under 800°C high-temperature exposure
👉 Ideal for fire-sensitive environments
✔ Strong Thermal Shock Resistance
- Can withstand sudden full-load operation at 50°C ambient temperature
✔ 100% Moisture & Water Resistance
- Fully sealed insulation system
- Excellent hydrophobic and anti-moisture properties
👉 Suitable for humid and polluted environments
✔ Ultra-Low Partial Discharge
- Optimized winding structure
- Strong electric field control
👉 Ensures stable and long-term operation
✔ Energy Saving & Eco-Friendly
- Low loss and high efficiency
- Recyclable insulation materials after service life
✔ Intelligent Monitoring
- Real-time operation monitoring
- 選購的遠端通訊系統
結構設計
🔸 Insulation System
- High-performance NOMEX insulation (DuPont)
- VPI vacuum pressure impregnation process
- Multi-cycle baking and curing
➡ 優點：
- High thermal class (Class H)
- Excellent mechanical strength
- 使用壽命長
🔸 繞組
- High-voltage winding: continuous winding structure
- Low-voltage winding: robust conductor design
➡ 功能：
- 抗短路能力強
- 高效冷卻效能
🔸 核心
- 高品質晶粒導向矽鋼
- 45° step-lap structure
- Elastic fixing between core and winding
➡ 優勢：
- Reduced no-load loss
- 低噪音操作
機械結構
- Elastic support system reduces vibration
- Rigid clamping structure improves stability
🔸 Terminals
- Top-mounted terminals
- Mid-position tap changer
- Plate-type low-voltage terminals with argon arc welding
應用
- Airports and transportation hubs
- 發電廠和變電站
- Metallurgical and heavy industries
- Hospitals and high-rise buildings
- 石化與核子設施
- Coastal and high-humidity environments
優勢摘要
- VPI + NOMEX insulation system
- Excellent fire resistance and safety
- Strong overload and thermal shock performance
- Fully moisture-proof and pollution-resistant
- Low partial discharge and high reliability
- Maintenance-friendly and long service life
常見問題
1️⃣ What is the difference between SGB and SCB transformers?
- SGB: VPI + NOMEX insulation (non-cast type)
- SCB: Epoxy resin cast insulation
👉 SGB is better for moist, polluted, and high-temperature environments, while SCB is better for indoor safety applications.
2️⃣ Can the SGB transformer operate in humid environments?
是的，它的功能：
- Hydrophobic insulation
- 防潮能力
- Fully sealed design
👉 Ideal for coastal and high-humidity areas.
3️⃣ Does it require forced cooling?
No, under normal conditions:
- Can operate at full load without forced cooling
- Supports overload operation
4️⃣是否提供遠端監控？
是的，它支援：
- 溫度監控
- 警報與保護系統
- Remote communication
