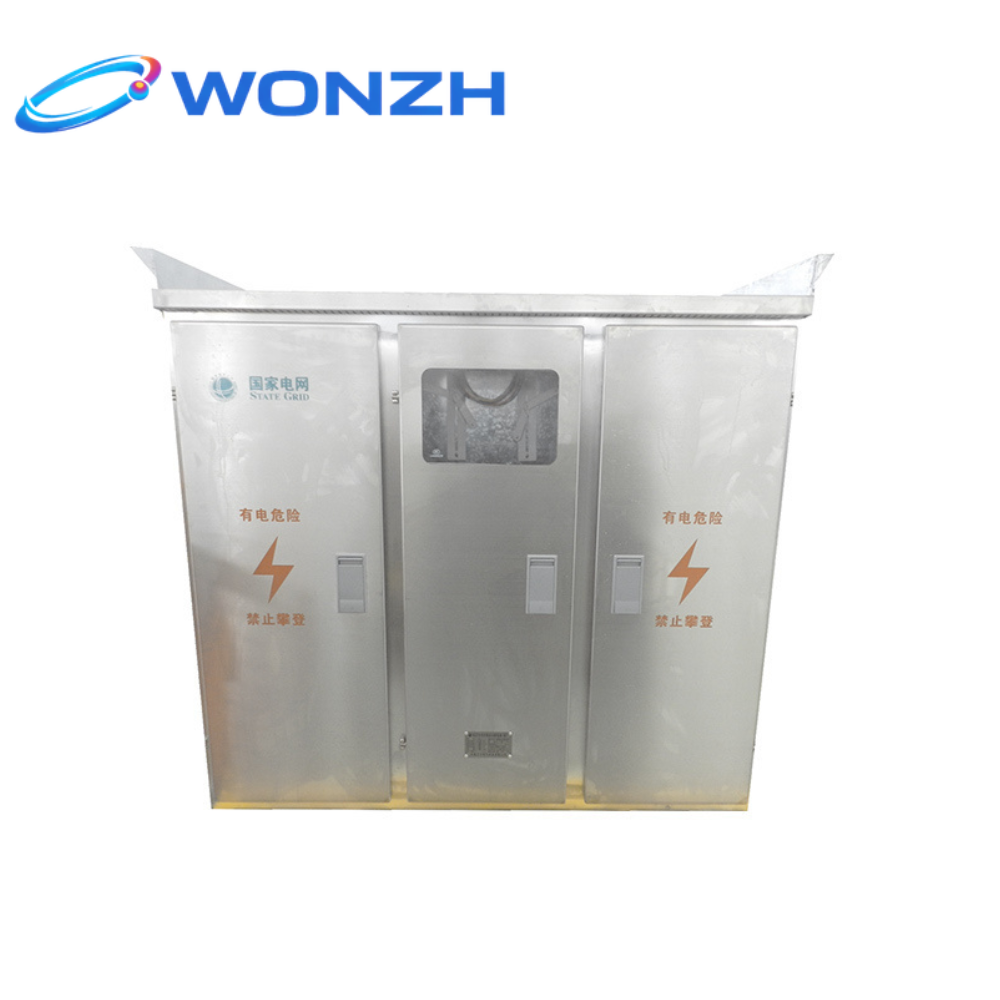

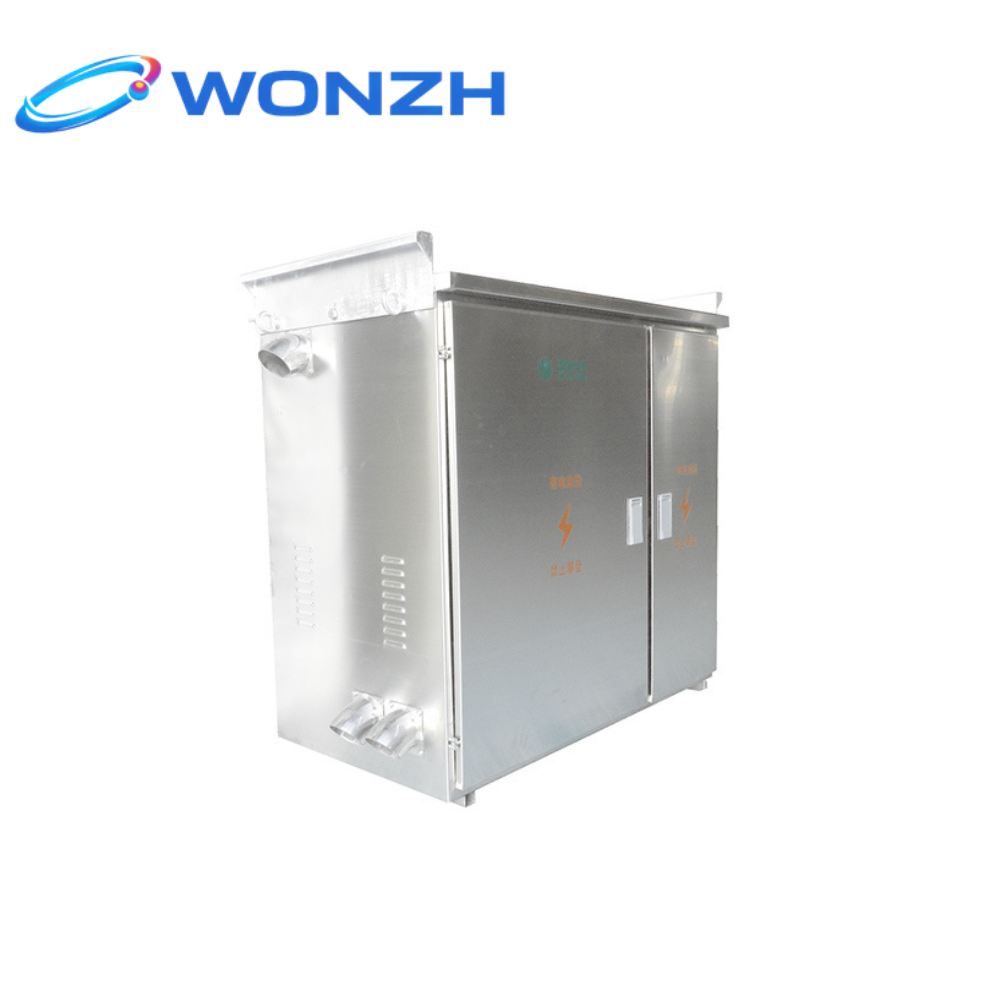

The JP Series Low Voltage Integrated Distribution Box is a multi-functional outdoor power distribution unit, specially developed for 10kV transformer low-voltage side applications.
It is designed for:
- Frequency: 50Hz
- Rated voltage: ≤ 0.4kV
Widely used in:
- Urban and rural power grids
- Pole-mounted transformer systems
- Outdoor distribution networks
This product integrates multiple functions into one compact system, including:
👉 Power distribution, metering, monitoring, protection, and reactive power compensation
🔹 Standards Compliance
- GB 7251.1 – Low Voltage Switchgear and Controlgear Assemblies
- CCC Certification (China Compulsory Certification)
- JB 7113 – Reactive Power Compensation Device Standard
🔹 Key Features
✔ Multi-Functional Integration
- Power distribution
- Energy metering
- Data acquisition
- Voltage monitoring
- Reactive power compensation
👉 One unit replaces multiple devices
✔ Comprehensive Protection System
Includes:
- Overcurrent protection
- Phase loss protection
- Leakage protection
- Surge (lightning) protection
👉 Ensures safe and stable operation
✔ Automatic Operation Capability
- Fault detection and isolation
- Automatic reclosing
- Intelligent control functions
👉 Improves grid reliability and reduces manual intervention
✔ Anti-Theft & Outdoor Design
- Anti-electricity theft structure
- Weather-resistant enclosure
- High protection level
👉 Suitable for harsh outdoor environments
✔ Compact & Easy Installation
- Small footprint
- Integrated structure
- Fast installation on-site
👉 Ideal for pole-mounted transformer systems
✔ Reactive Power Compensation
- Built-in compensation system
- Improves power factor
- Reduces energy loss
👉 Helps optimize power efficiency
🔹 Structural Design
🔸 Cabinet Structure
- Outdoor metal enclosure
- Anti-corrosion and weather-resistant design
🔸 Functional Modules
- Distribution unit
- Metering system
- Protection module
- Compensation module
- Monitoring unit
🔸 Installation Method
- Installed on:
- Transformer low-voltage side
- Pole-mounted systems
- Outdoor distribution points
🔹 Applications
- Urban & rural distribution networks
- Pole-mounted transformers
- Smart grid projects
- Infrastructure power systems
- Temporary and outdoor power distribution
🔹 Advantages Summary
- All-in-one integrated design
- High automation and intelligence
- Strong protection performance
- Anti-theft and outdoor durability
- Energy-saving with reactive compensation
- Easy installation and low maintenance
❓ FAQ
1️⃣ What is the JP Series distribution box used for?
It is used for:
👉 Low voltage power distribution, metering, protection, and compensation in transformer systems.
2️⃣ Where is it installed?
It is typically installed:
👉 On the low-voltage side of pole-mounted transformers (0.4kV)
3️⃣ Does it support smart grid applications?
Yes, it includes:
- Data acquisition
- Monitoring functions
- Automatic control
👉 Suitable for smart grid upgrades
4️⃣ What protection functions does it include?
It provides:
- Overcurrent protection
- Phase failure protection
- Leakage protection
- Lightning protection
5️⃣ Does it include power factor correction?
Yes, it has:
👉 Built-in reactive power compensation system to improve efficiency
